Union Special BC211P15-1
Automatic High Performance Bag Closing Machine without Electro-Mechanical Components
High Performance two thread double locked chainstitch bag closing machine, automatic version with vertical acting presser foot system for closing filled bags. Guides for filler cord for sealing the needle punctures. Independently adjustable chaining and presser foot pressure for optimized bag feeding. Low thread tension reduces the risk of thread breakage. Internal forced lubrication, shell design casting with large external oil filter. Low noise and vibration. Easy and quick sewing speed adjustment. Without electro-mechanical components (without feeler, without proximity switch and without solenoid valve)
| Type No. | BC211P15-1 |
|---|---|
| Series | BC200 |
| Application | Säcke zunähen |
| Stitches/min. | 2.750 |
| Stitch range | 6.50mm – 12.50mm |
| Standard setting | 8.00mm |
| Capacity under presser foot | 12.70mm |
| Thread chain and tape cutter | Electropneumatically jump out knive |
| Handling | Stationary |
| Corrosion protection | Rostgeschützt |
| Class | Hochleistung |
| Sewing capacity on paper | 32 plies |
| Bag material | PP woven-fabric PP laminated woven fabric PE-material Paper |
| Bag feed-in | Automatische Zuführung |
| Lubrication | Forced lubrication |
| Standard needle | 9848GF250/100 |

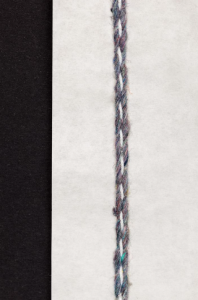

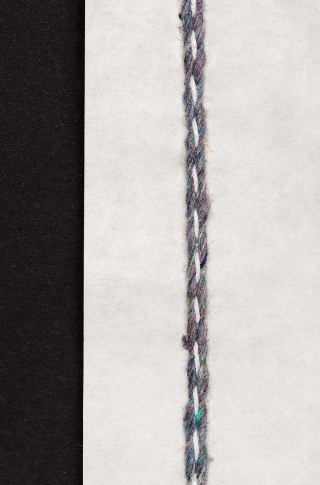

| Stitch types | 401 |
| Feed type | Bottom feed |
| Closures | Plain closure Fold over closure |
| Color | White |
| Packing mass (L/W/H) | 66cm/45cm/50cm |
| Net weight | 46kg |
| Gross weight | 51kg |
