Union Special 81500B

81500

Heavy Duty Single Needle High Throw Bag Making Machine, Seam Width Overall 19 mm, Top and Bottom Feed, for Geotextile

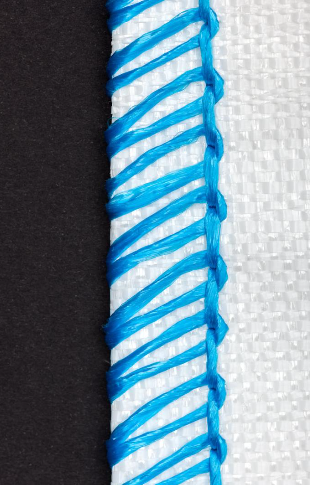

Heavy duty single needle, two thread overedging machine with high needle throw. With top and bottom feed for matched seams on heavy bag fabric. Standard overedge seam width 19 mm. Guide for filler cord from the top and / or below for sealing the needle punctures are available as extra order.

Type No. 81500B
Series 81500
Application Geotextile
Stitches/min. 1.400
Stitch range 6.00mm – 13.00mm
Standard setting 10.00mm
Capacity under presser foot 16.00mm
Thread chain and tape cutter (Ohne)
Bag material PP woven-fabric
PP laminated woven fabric
Felt
Woven fabric
Other
Lubrication Manual lubrication
Standard needle 9859G300/120
Stitch types 502
Feed type Top and bottom feed
Closures Plain closure
Branche Geologic materials
Material thickness 100-200 g/mē
above 200 g/mē
Needles 1
Thread 2500-4000 Den
Installation Table assembly
Color Olivegreen
Packing mass (L/W/H) 46cm/47cm/61cm
Net weight 48kg
Gross weight 53kg
