Heavy Duty Two Needle High Throw Safety Stitch Bag Making Machine, Seam Width 15mm, Top and Bottom Feed, Filler Cord Guide, Pneum. Presser Foot Lifter

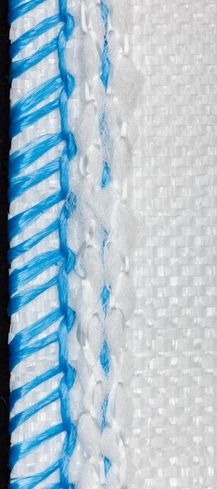

Heavy duty two needle, four thread safety stitch machine with high needle throw. With top and bottom feed for matched seams on heavy bag fabric. Needle distance 5 mm, overedge seam width 10 mm, seam width overall 15 mm. With guide for filler cord from the top and / or below for sealing the needle punctures of the left needle. Electro-pneumatically operated presser foot and upper feed dog lifter. Pneumatic presser foot spring.
| Type No. | 81300A2 |
|---|---|
| Series | 81300 |
| Application | Container bag |
| Stitches/min. | 1.400 |
| Stitch range | 6.00mm – 13.00mm |
| Standard setting | 10.00mm |
| Capacity under presser foot | 19.00mm |
| Thread chain and tape cutter | (Ohne) |
| Bag material | PP woven-fabric PP laminated woven fabric |
| Lubrication | Manual lubrication |
| Standard needle | 9853GA430/172 |
| Stitch types | (401.502) |
| Feed type | Top and bottom feed |
| Closures | Plain closure |
| Bag types | Single loop bag Double loop bag Container bag Baffle-Bag (Q-Bag) |
| Branche | Geologic materials Agricultural Food |
| Material thickness | 100-200 g/mē above 200 g/mē |
| Needles | 2 |
| Thread | 2500-4000 Den |
| Installation | Table assembly |
| Color | Olivegreen |
| Packing mass (L/W/H) | 46cm/47cm/61cm |
| Net weight | 48kg |
| Gross weight | 53kg |
