UNION SPECIAL 80700CD4HL

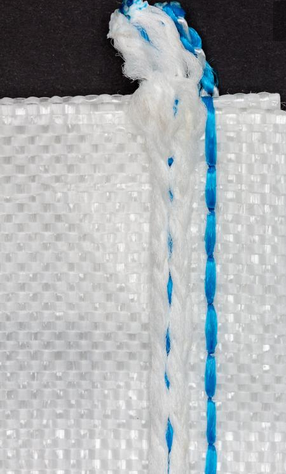

80700CD3111

Heavy Duty Two Needle Bag Making Machine (FIBC), Top and Bottom Feed, Guides for Filler Cord, Pneumatic Presser Foot Lifter, Hot Thread Chain Cutter

Heavy duty two needle double locked stitch sewing machine with top and bottom feed. Universally applicable for all seams on container bags, inserting top covers and attaching filling and discharging tubes on container bags. Easy crossing of side seams and belts. Upper feed drive in housing, therefore maximum capacity under the arm. Electro-pneumatically operated presser foot and upper feed dog lifter. Pneumatic presser foot spring. Guides for filler cord from the top and / or below for sealing the needle punctures. With built-in elctro-pneumatically operated hot thread chain cutter left of the needle for separating the thread chain.

Type No. 80700CD4HL
Series 80700
Application Container bag
Stitches/min. 1.400
Stitch range 6.00mm – 12.00mm
Standard setting 10.00mm
Capacity under presser foot 18.00mm
Thread chain and tape cutter Hot thread chain cutter left of the needle
Bag material PP woven-fabric
PP laminated woven fabric
Felt
Lubrication Manual lubrication
Standard needle 9848G300/120
Stitch types (401.401)
Feed type Top and bottom feed
Closures Plain closure
Bag types Single loop bag
Double loop bag
Container bag
Baffle-Bag (Q-Bag)
Branche Chemistry
Geologic materials
Agricultural
Food
Material thickness 100-200 g/mē
above 200 g/mē
Needles 2
Thread 2500-4000 Den
Installation Pedestal assembly
Table assembly
Color Olivegreen
Packing mass (L/W/H) 46cm/47cm/61cm
Net weight 44kg
Gross weight 49kg
