Heavy Duty Two Needle Double Locked Stitch Bag Making Machine (FIBC), Top and Bottom Feed, Guides for Filler Cord, without Thread Chain Cutter
Heavy duty two needle double locked stitch sewing machine with top and bottom feed for matched seaming on FIBCs, inserting top covers and attaching filling and discharging tubes on container bags. Upper feed drive in housing, therefore maximum capacity under the arm. Guides for filler cord from the top and / or below for sealing the needle punctures. Without thread chain cutter
| Type No. | 80700CD3 |
|---|---|
| Series | 80700 |
| Application | Container bag |
| Stitches/min. | 1.400 |
| Stitch range | 6.00mm – 12.00mm |
| Standard setting | 10.00mm |
| Capacity under presser foot | 18.00mm |
| Thread chain and tape cutter | (Ohne) |
| Bag material | PP woven-fabric PP laminated woven fabric Felt |
| Lubrication | Manual lubrication |
| Standard needle | 9848G300/120 |

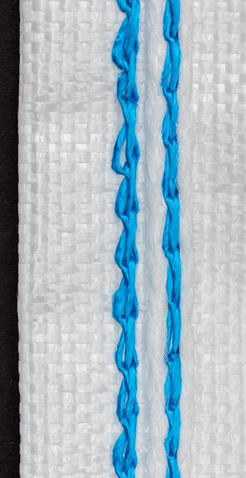

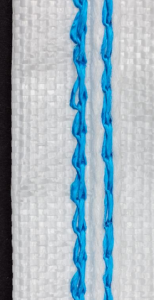

| Stitch types | (401.401) |
| Feed type | Top and bottom feed |
| Closures | Plain closure |
| Bag types | Single loop bag Double loop bag Container bag |
| Branche | Geologic materials Agricultural Food |
| Material thickness | 100-200 g/mē above 200 g/mē |
| Needles | 2 |
| Thread | 2500-4000 Den |
| Installation | Pedestal assembly Table assembly |
| Color | Olivegreen |
| Packing mass (L/W/H) | 46cm/47cm/61cm |
| Net weight | 44kg |
| Gross weight | 49kg |
